2019 China made 200m3 per hour waterwheel type sand washing plant for sale
1.Brief Introduction
The sand washing plant can be divided into the waterwheel type and
bucket chain type. Its function is to separate off the stones,
branches,grass and wash sand and make sand clean. The finished
product can be used for building,road constuction and many
industrial usages.
Since 1996,we have manufactured the sand sieving machine and sand
washing machine. The structure of the sand sieving machine is not
very complicated, but there are still some details which we need to
take care. For example, the angle of inclination of the hopper, the
length of the conveyor belt from the hopper to the screen, the mesh
size of the screen,and the stability of the complete sand sieving
machine,the total power of the equipments.
We can design the sand sieving & washing machine according to the
specific requirements of clients, the capacity,types of materials
wanted, discharge distance and driven method. If there is no
electricity in your working site, we could use diesel generator to
supply power for the whole sand washing plant.
2.Techinical Specification
| Model | Screen size (mm) | Max. feed size (mm) | Capacity (t/h) | Electric motor power (t) | Weight (t) | Overall Dimensions (mm) |
| YLSWP15 | 10mm | 200 | 15-80 | 11 | 4 | 6600×1800×1850 |
| YLSWP50 | 10mm | 200 | 30-180 | 15 | 5 | 6906×2100×1600 |
| YLSWP100 | 10mm | 200 | 30-200 | 15 | 6 | 8906×2100×1900 |
| YLSWP120 | 10mm | 200 | 30-250 | 18.5 | 7 | 8906×2100×2150 |
| YLSWP150 | 10mm | 250 | 50-300 | 18.5 | 6 | 8509×2536×1810 |
| YLSWP200 | 10mm | 250 | 50-300 | 22 | 8 | 8509×2536×1910 |
| YLSWP260 | 1 10mm | 250 | 50-300 | 30 | 9 | 8509×2536×2250 |
3. Request For Reply
a. How many tons of sand mining do you want to deal with per hour ?
b. Plz send me as more pictures of your sand mining as possible.
c. Would you want to separate the sand into how many kinds , and
graves into how many kinds of classification.
d. Is the electricity and water available in your working place?
4. Others
| Delivery period | 30 working days |
| Payment terms | T/T or 100% irrevocable letter of credit at sight |
| Port of loading | Qingdao seaport,Shandong Province,China |
| Warranty | 1 year except the wear spare parts. |
| After-sales service | installtion the dredger,train the operators, maintenance |
5.Key Components
| Feeding screen | separate off the big stones |
| Waterwheel and box | store the water,wash the sand |
| Classifying screen | separate off the smaller pebbles,branches,and grass |
| Convey belt | discharge the tailings and the finished product |
| Water distributor | Supply water for the whole plant |
| Diesel generator | Supply power for the whole plant |
6.Other Products
| a. cutter suction dredger | f.sand wasing plant |
| b.jet suction dredger | g.trasnport barge |
| c.bucket chain diamond dredger | h.work boat |
| d. diamond dredger | i. HDPE pipes |
| e.gold washing plant | j. floater |

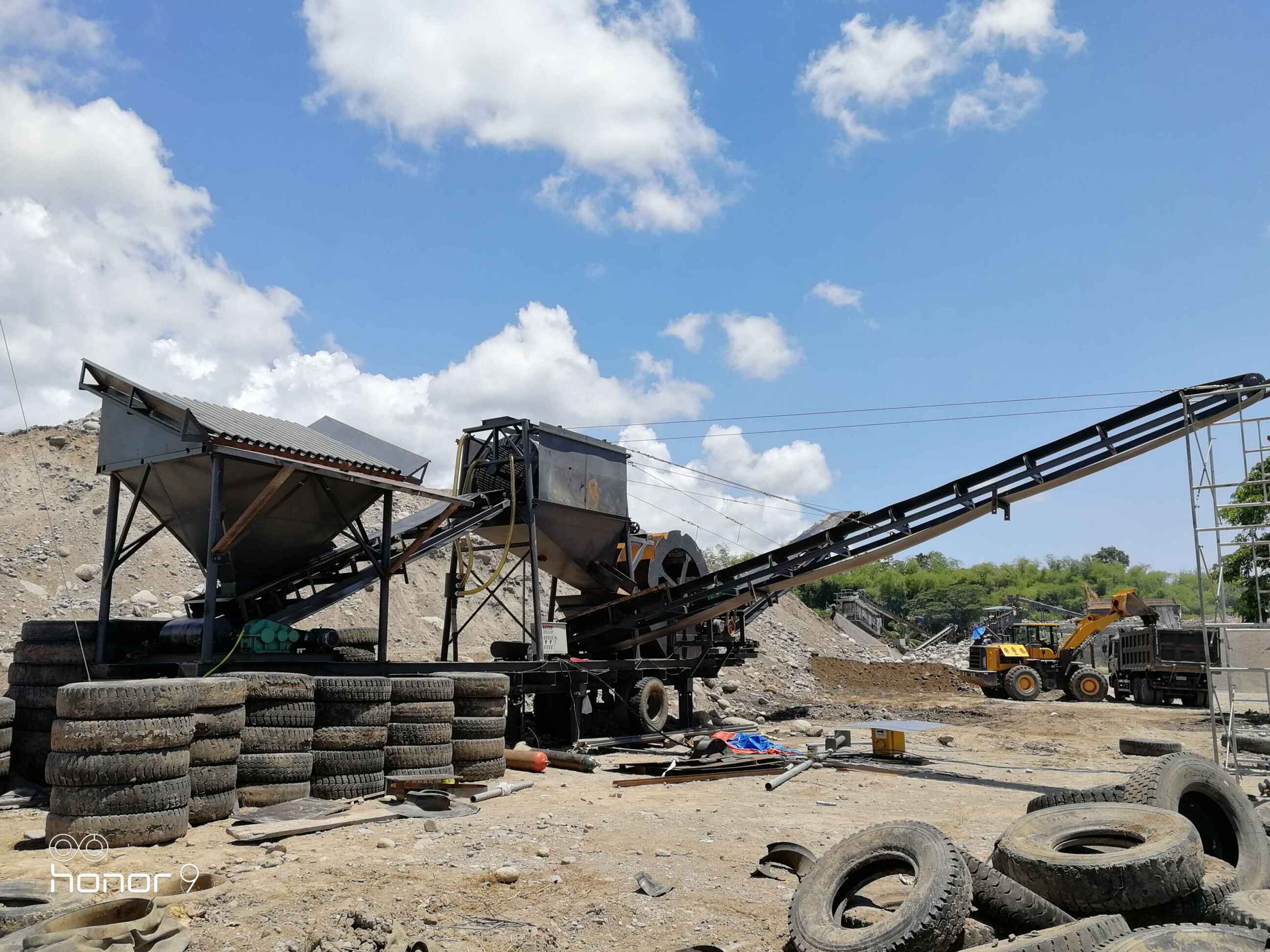

7. Picture Shows
|
|
