    Customized Alluvial Gold Washing Plant 250 Tons Per Hour Deal Capacity

    Ask Lasest Price
    Brand Name : YONGDELI
    Model Number : YLGWP-250
    Certification : SGS OR BV
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 100 sets per year
    Delivery Time : 40 working days
    • Product Details
    • Company Profile

    Customized Alluvial Gold Washing Plant 250 Tons Per Hour Deal Capacity

    Alluvial sand used dry land 250 tons/hour gold washing machine's manufacturer and supplier

    1.Company Information

    Qingzhou Yongli Mining And Dredging Machinery Co., Ltd , which is a China leading company of mining and dredging equipments, has more than 20 years experience in producing cutter suction dredgers,bucket chain dredgers, jet suction dredger,diamond/gold dredgers, gold/sand washing plant, pulsating sluice box, pulsating jigger, iron dressing equipments, transport barge ,work boat and so on. Now this company has 50 staff and the workshop area is about 5000 square meters. We have the experience of export for 10 years.
    Successful series of products have won the recognization and approval of our honourable clients.
    We always insist on the principle client first, quality fist.
    Yongli Machinery,You deserve it!

    2.Product Description

    Yongli brand gold washing plant is widely used in gold mining mixed with sand in palaeo channel, palaeo-riverbed, alluvial placer, tailing after ball milling, and diamond & zirconium in raw ore. If the percentage is high in the raw ore, Iron ore needs to be retrieved firstly with magnetic separator, then gold, diamond, zirconium will be concentrated. This set of mining equipments are composed of several gravity concentrators.
    The concentration ratio could reach as high as 1:1000, and the recovery efficiency could reach about 90% after series of separation.
    Advantages:
    1.produce and design the product based on the actual working condition of clients.
    2. The gold washing plant can recover the gold for 2 times by pulsatinf sluice box and fixed sluice box.
    3. we have much samller capacity gold washing plant fit for the testing and exploring purpose.
    4.have environment hardened structure to work in the coldest or the hottest weather
    5. Two operators can manage the whole washing plant
    6. We can supply after-sales assembling,training the operators and maintenance services.
    7.simple replacement and collecting of gold-dust-gathering mat

    3. Technicial Parameters

    MODELCAPACITY(CBM/H)POWER(KW)WATER(M3/H)ORE SIZE(MM)RECOVERY
    YLGWP-505040100<30085-90%
    YLGWP-10010092200<30085-90%
    YLGWP-150150100300<30085-90%
    YLGWP-200200106400<30085-90%
    YLGWP-250250118500<30085-90%


    4.Request For Reply

    a. How many tons of raw ore do you want to deal with per hour?
    b. If there is clay or mud in the raw ore? If the percentage of mud or clay is high, we will design the cutter drum.
    c. if there is electricity in your work site? If it is without electricity, we suggest you to prepare one set of diesel generator.
    d. The gold particle size in mm?
    e.In the raw ore, the sand and stone percentage ratio? Then we can make sure how many sets of pulsating sluice box that you need.

    5. Others

    Delivery period50 working days
    Payment termsT/T or 100% irrevocable letter of credit at sight
    Packagepaulin
    Port of loadingQingdao seaport,Shandong Province,China
    Warranty1 year except the wear spare parts.
    After-sales serviceinstalltion the dredger,train the operators, maintenance


    6.Other Products

    a. cutter suction dredgerf.sand wasing plant
    b.jet suction dredgerg.trasnport barge
    c.bucket chain diamond dredgerh.work boat
    d. diamond dredgeri. HDPE pipes
    e.gold washing plantj. floater

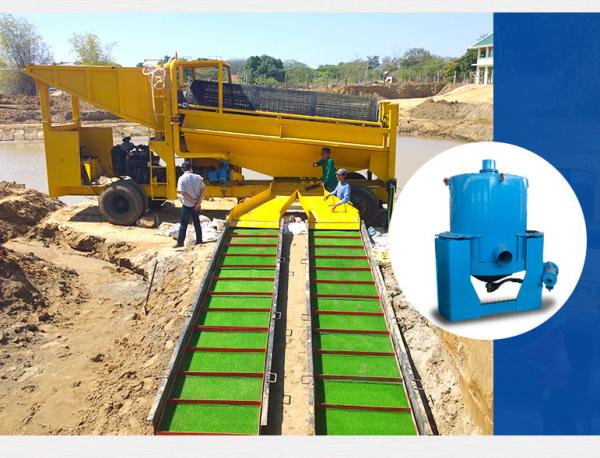

    7.Picture Show













































    Quality Customized Alluvial Gold Washing Plant 250 Tons Per Hour Deal Capacity for sale
