    Customized Self Propelled Barge 1000 Tons Capacity High Efficiency

    Ask Lasest Price
    Brand Name : YONGDEL
    Model Number : YLSTB-1000
    Certification : BV OR SGS certificate
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 30 SETS PER YEAR
    Delivery Time : 60 working days
    • Product Details
    • Company Profile

    Customized Self Propelled Barge 1000 Tons Capacity High Efficiency

    2019 river or lake used 1000 tons capacity sand trasnport ship for sale


    1. Brief Introduction


    Yongli self propelled sand transport barge is designed and used for sand/rocks/coal transport in river,lake,sea and channels. Usually it matches up with sand dredger. After sand and gravels are digged up, and if the stock area has a long distance from the dredging area, you have to use the transport barge to transport the sand and gravels. There are conveyor belts on the barge. The sands and gravels will be discharged onshore when the barge reaches the stock area and the unloading work will be very fast.

    This barge can also be designed to bottom split barge. When the transport barge opens it bottom door, the transport materials can be discharged into the water directly.

    2. Technical specification


    NameSpecification
    Hull length45m
    Hull breadth9.0m
    Hull height3.2m
    Bottom steel plate6mm
    Side steel plate6mm
    Deck steel plate6mm
    Engine power * 2 sets150kw
    1500rpm,
    Origin: WEICHAI,China
    GearboxQuantity:2 pcs
    Model:300
    Ratio: 3:1
    Shaft diameter115mm
    Propeller diameter1.2m
    Hydraulic steering machine3 tons
    Conveying beltL:45m* W:0.8m
    Diesel generator50kw
    Transport volumes per time1000 tons per hour
    Empty load sailing speed18.5km/hour
    Full load sailing speed12.2km/hour
    Total weight

    130 tons



    3. Others


    Delivery period50 working days
    Payment termsT/T or 100% irrevocable letter of credit at sight
    Packagepaulin
    Port of loadingQingdao seaport,Shandong Province,China
    Warranty1 year except the wear spare parts.
    After-sales serviceinstalltion the dredger,train the operators, maintenance

    4.Other Products


    a. cutter suction dredgerf.sand wasing plant
    b.jet suction dredgerg.trasnport barge
    c.bucket chain diamond dredgerh.work boat
    d. diamond dredgeri. HDPE pipes
    e.gold washing plantj. floater

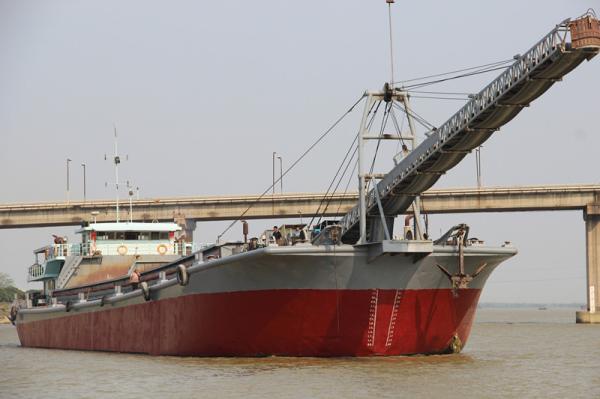

    5. Picture Shows


    Quality Customized Self Propelled Barge 1000 Tons Capacity High Efficiency for sale
