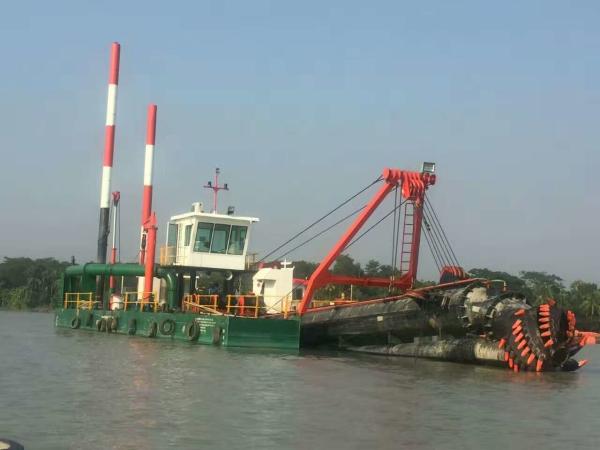

14 inch hydraulic cutter suction dredger for land reclamation and capital dredging
1. Company Information
Qingzhou Yongli Mining and Dredging Machinery Co., Ltd , is one of China leading companies of sand & gold& diamond mining equipments, which has more than 25 years' experience in producing cutter suction dredger, jet suction dredger,bucket chain dredger,diamond/gold dredgers, pulsating sluice box/jigger, gold washing plant, sand washing & screening machinery, sand transport barge,work boat and so on. Successful series of products have won the recognization and approval of general administration of Quality Supervision. Welcome to our factory for discussion!
2. Brief Introduction
Cutter suction dredger has broad range of applications in operations in the rivers , lakes, seas for the dredging, excavation and reclamation.In exceptional circumstances a cutter suction dredger cutter installed on the highpower devices, can be excavated without blasting rocks such as basalt and limestone strata.With characteristics of high efficiency, large output up to several thousand cubic meters per hour; the sand, or crushed rock material to rely on a strong driving force through the mud pumps and mud pipeline, pumping out a few kilometers outside.
3. Technical Specification Of 14" CSD
| Item Name | Descriptions /Specifications |
| Water flow | 3000m³ |
| Slurry concentration, % | 20% |
| Production Capacity (solid) | 700m³/hour |
| Discharge distance (max) | Max 2000 m |
| Dredging depth at 45 degree | 15 m |
| Min. dredging depth | 1.4 m |
| Inner Diameter of suction pipe | 600 mm |
| Inner Diameter of discharge pipe | 500 mm |
| Average Draught | 1.4m |
| Maximum draught | 1.7 m |
| Total weight | 180 Ton |
| Total installed power | 1193KW |
| Fuel tank capacity | 60000L |
4. Our services
a. Design the dredger based on the customer's detailed
requirements.
b. supply one year's guarantee for the whole dredger except the
wear spare parts.
c. supply after-sales installation, trial operation, training the
operators, maintence and other services.
d.send experienced operators to help the client with operation their equipments based on clients' requirements.
5. FAQ
a. how many cubic meter for the clear water flow per hour?
b. How many meters for your dredging depth?
c.How many meters for your discharge distance?
d.For the engine brand, we can support Weichai,Cummins or Caterpillar. Which brand is your choice?
6.Others
| Delivery period | 50 working days |
| Payment terms | T/T or 100% irrevocable letter of credit at sight |
| Package | paulin |
| Port of loading | Qingdao seaport,Shandong Province,China |
| Warranty | 1 year except the wear spare parts. |
| After-sales service | installtion the dredger,train the operators, maintenance |
|
|
